Singlemode LSZH Jacket Fiber Optic Patch Cord Simplex / Duplex FC / UPC

Name: Singlemode LSZH Jacket Fiber Optic Patch Cord Simplex Duplex FC UPC
Brand: FOCABLE
Price: 1 USD

Brand Name : FOCABLE

Model Number : SC/APC-SC/APC SM Simplex Fiber Patch Cord

Certification : RoHS Compliant, SGS Certificate, ISO Certificate

Place of Origin : China

MOQ : 10PCS

Delivery Time : 3-5days

Packaging Details : 1PCS/PE Bag

Fiber Type : SM, OM1, OM2, OM3, OM4

Cable Material : PVC, LSZH, OFNP, OFNR, Hytrel

Cable Diameter : 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm

Connector : SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ

Cores : Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores

Length : 1M, 2M, 3M, 5M or as per customer request

Contact Now

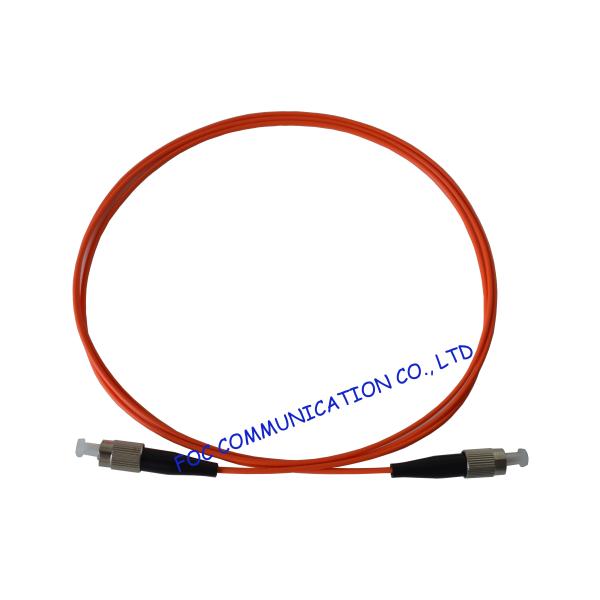

Singlemode LSZH Jacket Fiber Optic Patch Cord Simplex / Duplex FC / UPC

FC optical fiber cords are widely used in fiber optic systems; especially FC single mode products are very popular. FC standard fiber optic connectors are used for telecommunications, CATV, LAN, MAN, WAN, Test & Measurement, Industry, Medical and Sensors. They are well known for general, average applications. We supply single mode and multimode version FC fiber jumper cables and FC fiber optic components.

The single-mode optical fiber with low water peak used in the patch cords is compliant with ITU-T G.652.D standard. It provides full compatibility and ability to perform quality splices with existing fiber-optic networks. The average attenuation of the fiber is about 0.4 dB/km for 1310 nm, and 0.25 dB/km for 1550 nm. The optical fiber is reinforced by aramid fibers (Kevlar) and covered with PVC sheath.

The optical fibers compliant with ITU-T G.652.D are now among the best standard single-mode fibers on the market. Before introduction of the G.652.D recommendations, optical systems could use one of the three transmission windows with lower attenuation (I: 850 nm, II: 1310 nm, III: 1550 nm). Systems based on optical fibers with low water peak can work in the whole band from 1280 nm to 1650 nm.

Features
Meets Telcordia GR-326 Core and ROHS requirements.
The connector could be SC,FC,LC,ST,MU, MTRJ ,E2000 etc.
The cable could be G652D,G655,G657,OM1,OM2,OM3 etc.
The cable size could be 1,6*3.3, 2.0*4.1,2.8*5.7
Application: Fiber CATV, Fiber Cabling system, LAN,FTTH
Clean and Scratch-Free End Face
Proportional geometric test is applied to the normal production.
100% interferometer check is available under special requirement.

Optical Specification

Connector	SC,FC,LC,ST,MU,E2000,MTRJ			MPO/MTP
Polishing	SM/UPC	MM/PC	SM/APC	SM/PC	MM/PC
Insertion Loss(max)	≤0.30dB	≤0.30dB	≤0.30dB	≤0.75dB	≤0.5dB
Return Loss(min)	≥50 dB	≥35 dB	≥60 dB	≥40dB	≥20dB
Tensile Strength	<10kg
Durability	<0.20 dB typical change, 500 matings
Repeatability	≤0.1dB
Storage /Operating Temperature (°C)	-40~+85

Geometric Specification

		PC End-face		APC End-face
Radius of Curvature	SC/FC/ST	10~25 mm		5~12 mm
	LC/MU	7~25 mm		5~15 mm
Apex Offset		≤50 um
Fiber Spherical Height		+/- 50 nm
Angular Offset		------	8°± 0.2°

Singlemode LSZH Jacket Fiber Optic Patch Cord Simplex / Duplex FC / UPC

Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
